Network Setup (As of Jan 21st 2022)

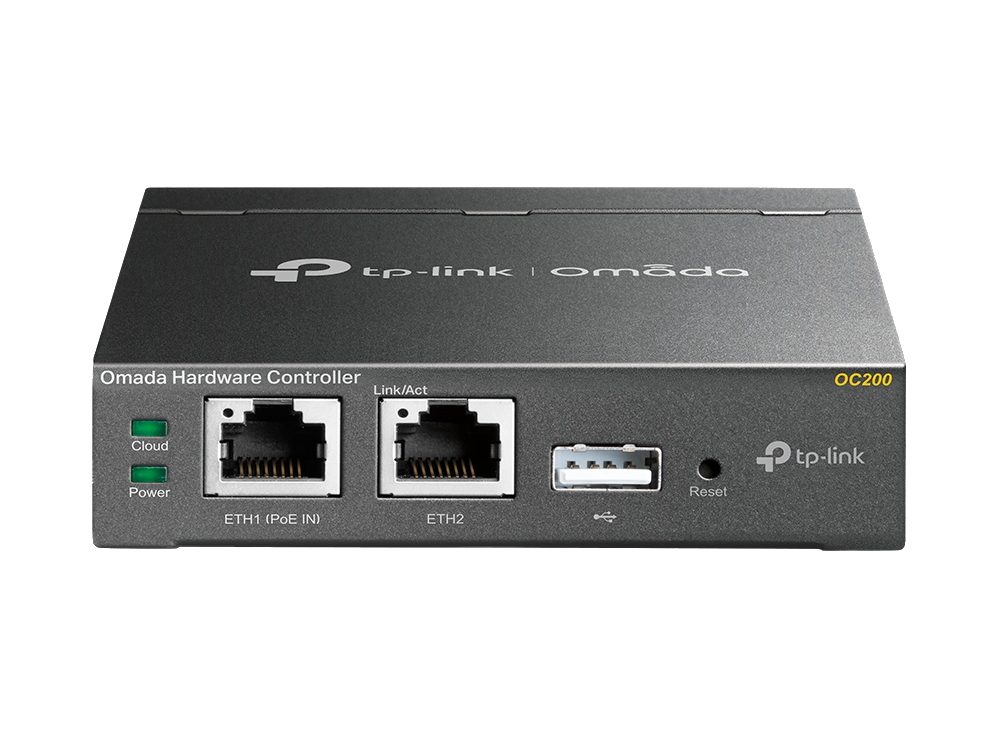

TP-Link OC200 Omada
Hardware Controller
Centralized Management
Up to 100 Omada Devices

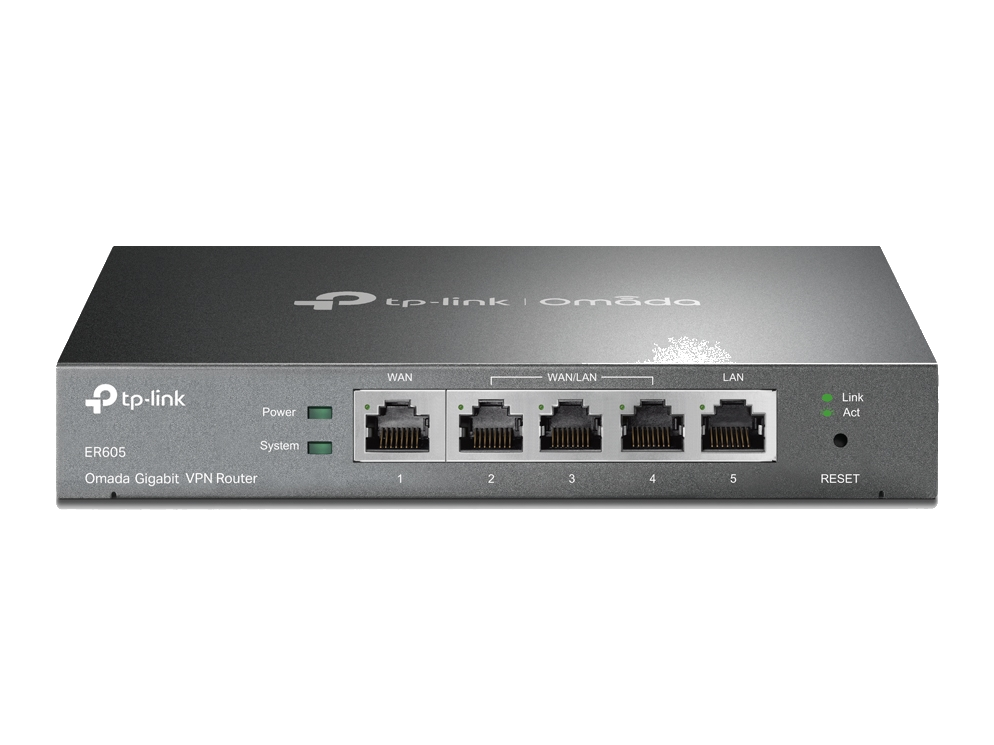

TP-Link ER605 Gigabit
VPN Router
5 Gigabit Ports
High-Security VPN
Multi-WAN Load Balance

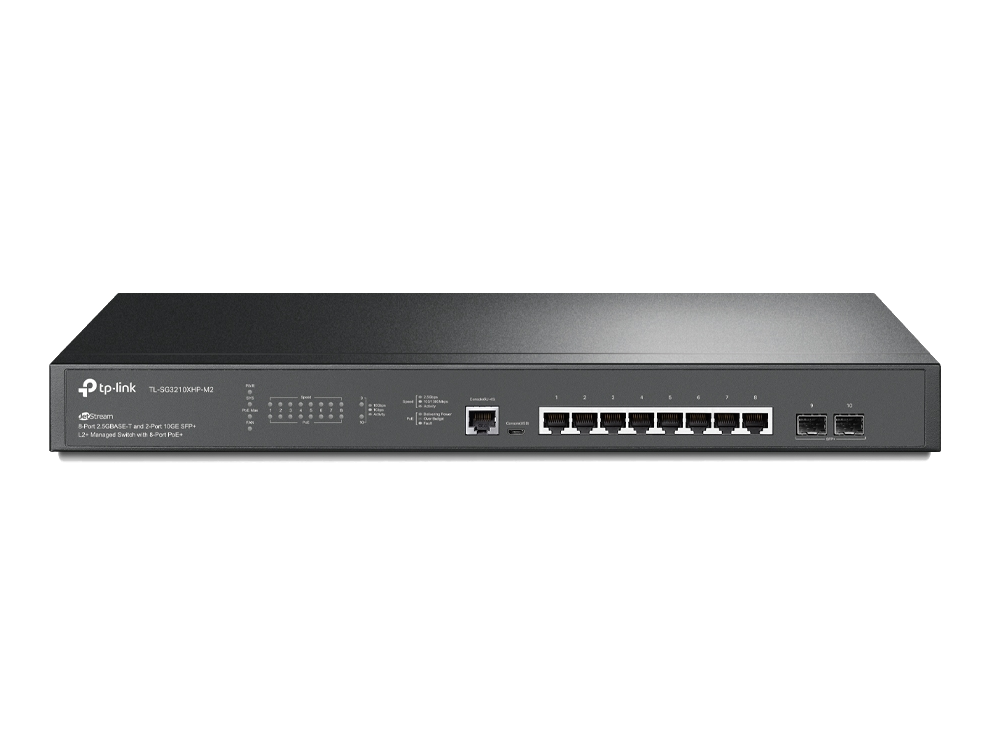

TP-Link TL-SG3210XHP-M2
Jetstream Switch
8× 2.5 Gbps PoE+ Ports
2× 10 Gbps SFP+ Ports
240 W PoE Budget

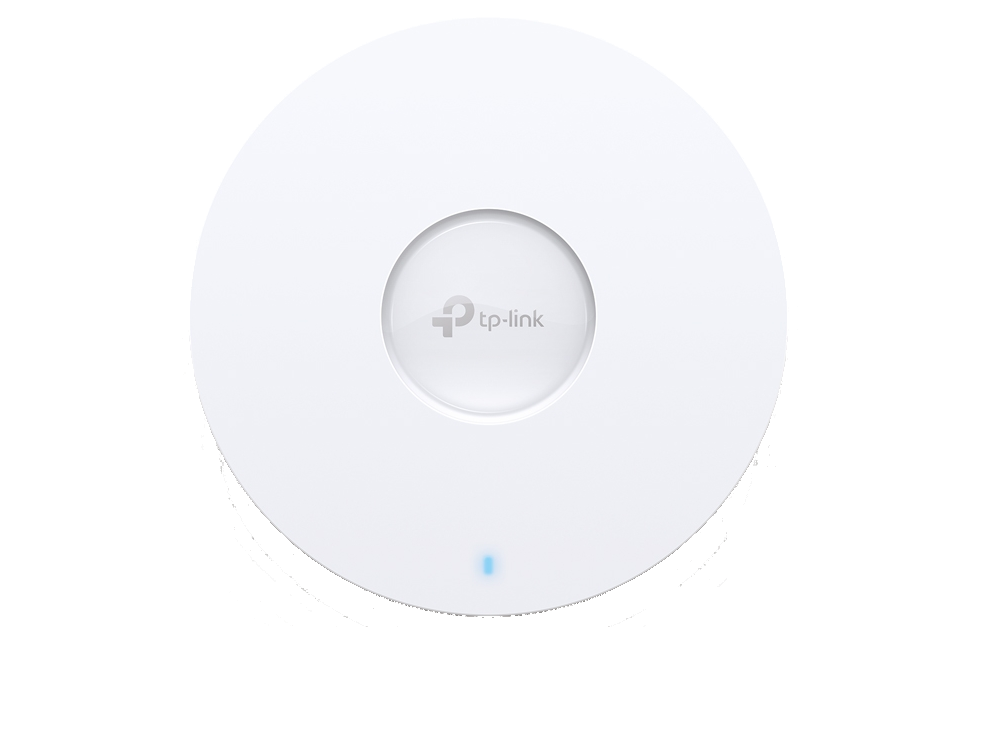

TP-Link EAP660 HD
AX3600 Access Point
2.5G PoE+ Port
1148 Mbps on 2.4 GHz
2402 Mbps on 5 GHz
Smart Home Supervisor

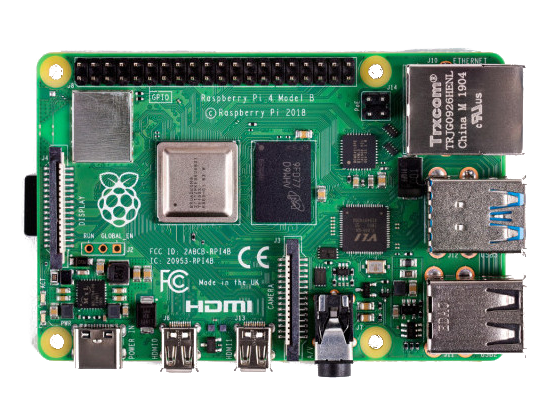

Raspberry Pi 4 Model B
Quad Core Cortex-A72 64-bit @ 1.5GHz
4GB LPDDR4-3200 SDRAM
Gigabit Ethernet with PoE HAT
2.5" 240GB SATA 3 Boot SSD
Nortek HUSBZB-1 Z-Wave/Zigbee Hub
Home Assistant OS 7.1
Add-on
ESPHome
Mosquitto MQTT Broker
Samba Backup & Share
Z-Wave JS Network Controller
Integration
HACS
Font Awesome
HA TP-Link Omada
Light-load Docker
Container Machine

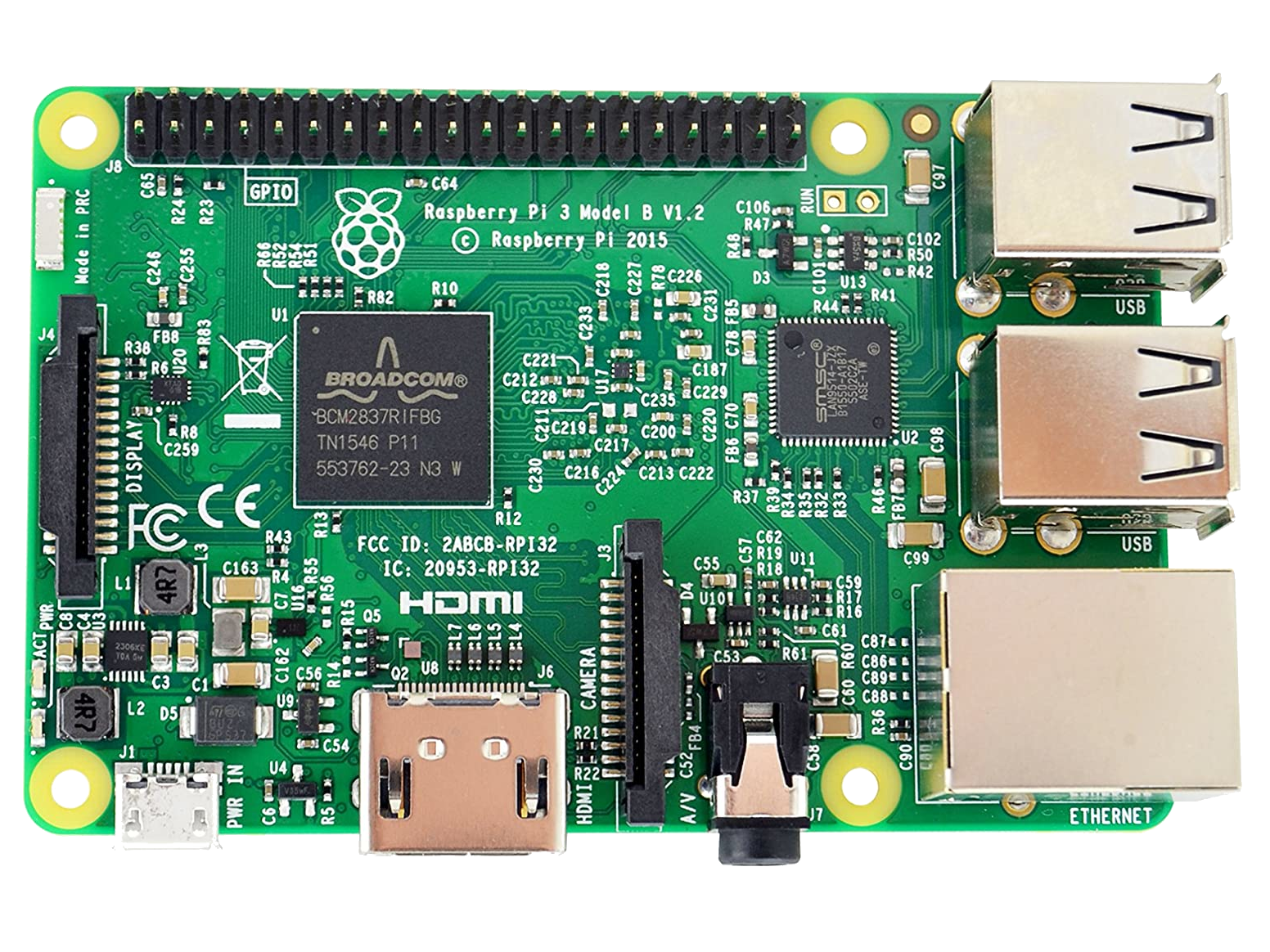

Raspberry Pi 3 Model B
Quad Core BCM2837 64bit @ 1.2GHz
1GB LPDDR2 SDRAM
100Megabit Ethernet
64GB SD Card
Raspbian GNU/Linux 11 (bullseye)
Container
Portainer Community Edition
heimdall
YoutubeDL-Material
AirConnect
Deluge
Reactive Resume
High-load Service
and Storage Server

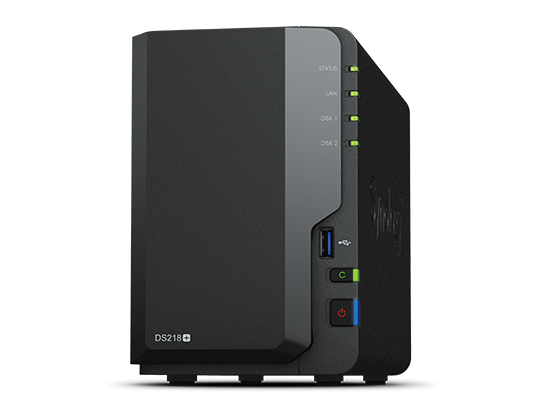

Synology DiskStation DS218+
Intel Celeron J3355 Dual Core @ 2 GHz
2GB(+4GB) DDR3L RAM
Gigabit Ethernet
2x 4TB WD Red NAS Hard Drive
Synology DX517 5 Bay Expansion Unit
3x 12TB WD 5400RPM 3.5" HDD
2x 8TB Seagate IronWolf NAS HDD
DiskStation Manager (DSM) 7.0
Package
File Station (SMB)
Synology Photos
Surveillance Station
MariaDB 10
phpMyAdmin
Container
Calibre-web
Firefly III
Jellyfin
Navidrome
Vaultwarden
